EMBRYO TRANSFER CATHETER
WITH TULIP SHAPED BULB

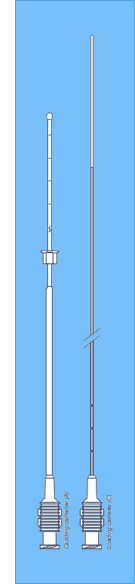

The Tulip is a set for difficult cervical passage, consisting of two parts:
a guiding catheter (A) and a loading catheter (C).
Features
- The Tulip tip enables easy atraumatic entry through the cervical canal
- Mandrel available for extra difficult transfers
- Positioner for depth adjustment
- A combination of a soft, flexible intrauterine catheter and a solid cervix catheter with memory
- Markings on outer tube for easy positioning
- Memo function of the guiding catheter
- 5 free mandrels to preshape the guiding catheter in every box of 25 pieces
- Handle with luer lock for a more secure connection to syringes
- Reinforced metal support of loading catheter for optimal control
| GYNO INFO THE TULIP MEMO |
| Length |
A) 200 mm (± 2 mm)
C) 266 mm (± 2 mm) |
| Tube OD |
A) 2.20 mm (± 0.05 mm)
C) 1.00 mm (± 0.05 mm) |
Total volume
Total volume minus hub |
C) 0.21 ml
C) 0.069 ml |
| Tulip bulb |
3 mm |
| Sterile |
Sterilized by Radiation |
| Quality Control |
MEA and LAL |
| Order Number |
#4000 Memo |
The Tulip Memo - Embryo Transfer Catheter with Tulip Shaped Bulb
