PRESHAPED EMBRYO TRANSFER
CATHETER WITH TULIP SHAPED BULB

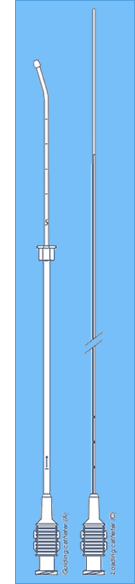

The Tulip is a set for difficult cervical passage, consisting of two parts:
a guiding catheter (A) and a loading catheter (C).
Features
- Preshaped guiding catheter, ideally curved for easy entry when uterus is flexed
- The Tulip tip enables easy atraumatic entry through the cervical canal
- Positioner for depth adjustment
- Markings on outer tube for easy positioning
- Handle with luer lock fitting for a more secure connection to syringes
- Reinforced metal support of loading catheter for optimal control
- Arrow marking on outer tube for curve indication
| GYNO INFO THE TULIP |
| Length |
A) 200 mm (± 2 mm)
C) 266 mm (± 2 mm) |
| Tube OD |
A) 2.20 mm (± 0.05 mm)
C) 1.00 mm (± 0.05 mm) |
Total volume
Total volume minus hub |
C) 0.21 ml
C) 0.069 ml |
| Tulip bulb |
3 mm |
| Sterile |
Sterilized by Radiation |
| Quality Control |
MEA and LAL |
| Order Number |
#4000 The Tulip |
The Tulip - Preshaped Embryo Transfer Catheter with Tulip Shaped Bulb
